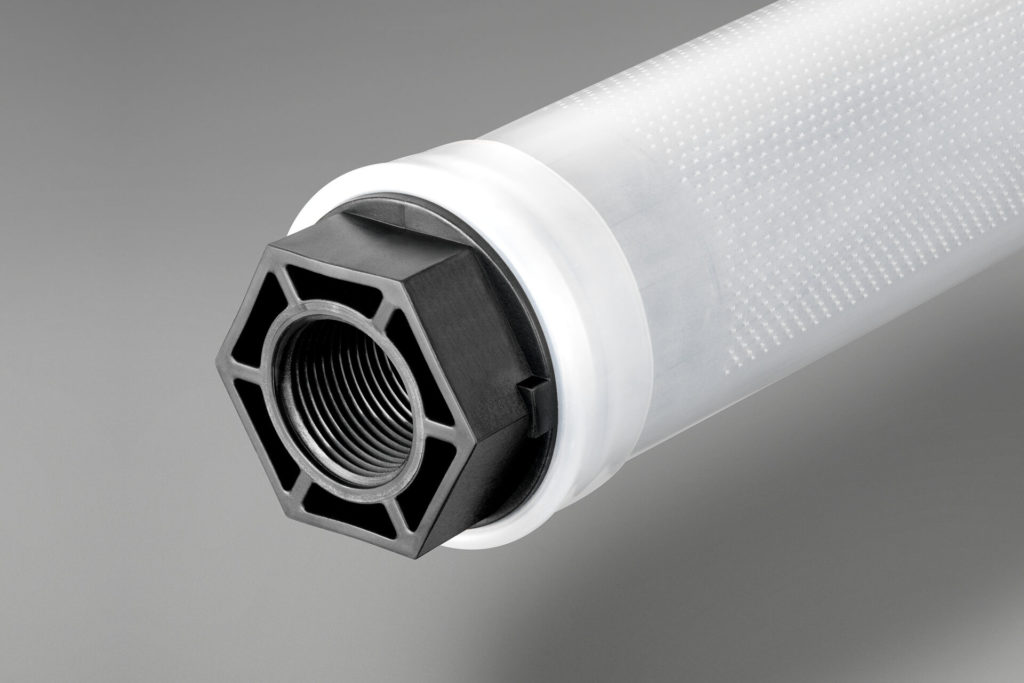

JetFlex® TD Tube Diffuser (TD Series)

The JetFlex® TD series of tube air diffuser is a fine bubble aeration system that uses compressed air. Our tube diffuser combine cost-effective design, low installation and maintenance costs with reliability, durability and efficiency. They are suitable for both intermittent and continuous operation. We also offer replacement membranes to increase efficiency in existing aeration systems.

The advantages of our JetFlex® TD tube diffusers at a glance:

  • Different perforation types adapted to the operating conditions and requirements
  • Precise slits for high oxygen input and low pressure drop
  • Low pressure loss due to the grooved polypropylene carrier pipe
  • Implementation of high occupancy densities possible
  • Active length from 200 – 1200 mm with a standard length of 500 mm, 750 mm and 1000 mm
  • The combination of different lengths enables a uniform installation even in unusual pool geometries and round pools
  • Standard diameters of 65 mm and 90 mm

Our JetFlex® TD tube diffuser are used for the following aeration applications:

  • Aeration of drinking water
  • Aeration of waste water
  • oxygen input into aeration tanks
  • Aeration of rivers and lakes
  • Pre-treatment of industrial waste water
  • Aeration of constructed wetlands
  • CO2 gassing for neutralization
  • oxygen input for sludge stabilisation
  • Aeration of fish ponds and aquaculture
  • Aeration of concentrate and leachate from biogas plants

Our range of accessories for tube diffuser in sewage technology:

  • PVC adhesive saddle
  • Check valve
  • Supports for piping
  • Dummy plug.
  • Adapter
  • Gasket for tube diffuser TD65-2 G
  • Gasket for tube diffuser TD63-0
  • Stainless steel clamp
  • Clamping pliers
  • Stainless steel connector for square tubes
  • End plug for floor bracket
  • Floor bracket for aerator
  • Tapping clamp with different threads for various pipe diameters

Available from Jäger Umwelt-Technik

  • EPDM holder
